Multi-Protocol Lighting Controller
LNX-378
SD Card Playback · RDM · Full Web Configuration · Music Sync · GPS Sync · Dual Network Port Daisy-Chaining
Beyond Control · Redefining Lighting Excellence
ArtNet-4 & sACN
Supports Art-Net4 and sACN (E1.31) dual protocol stacks, compatible with mainstream consoles like MA2, Madrix, Freestyler, with up to 48 Universe spaces.
SD Card Full-Scene Playback
Built-in 16GB high-speed card, can record any ArtNet data and replay offline, freeing from PC constraints, supports scheduled playback, fade-in/fade-out switching.
KNX & UDP Integrated Ecosystem
KNXnet/IP direct access to smart home bus, ETS5 configuration; UDP/RS485 semantic command set, offering more freedom in remote control.
Music Rhythm Synchronization
3.5mm LINE IN + built-in microphone, extracts music beats in real-time, making lighting pulse with the rhythm, ideal for KTV/gym atmospheres.
GPS / Network Multi-Device Sync
Supports GPS/BeiDou dual-mode time synchronization or master-slave network sync, suitable for large-scale bridge and building lighting integration.
RDM & Advanced Tuning
DMX ports support RDM remote device management, Gamma correction, TTL custom chips, meeting demanding engineering requirements.
LNX-378 · UAE Expo
At the UAE Expo, the LNX-378 took on the core lighting control task, driving a large-scale LED matrix to deliver a stunning light show. Powered by ArtNet/sACN multi-protocol integration, SD card offline playback and precise multi-device GPS synchronization, the LNX-378 ran reliably on a globally watched stage, demonstrating the professional strength of Chinese lighting control technology.
- Stable multi-device, multi-protocol transmission
- Offline playback for unattended operation
- GPS multi-device sync for large-scale integrated control
LNX-378 · Osaka Expo
At Expo 2025 Osaka, the LNX-378 once again played the core role in lighting control, providing precise driving and multi-device synchronized control for the large LED lighting installation of the Indonesia Pavilion in the Expo park. With SD card offline playback and ArtNet/sACN multi-protocol integration, the LNX-378 continues to prove the stability and reliability of Chinese lighting control technology on the world stage.
- Lighting effects created with LnxEffect
- SD card offline playback, no network dependency
- KNXnet/IP integrated control
Sub-Models · Professional Customization
Flexible options to suit various lighting engineering scenarios
| Model/Suffix | Basic Functional Description | Enhanced Features |
|---|---|---|

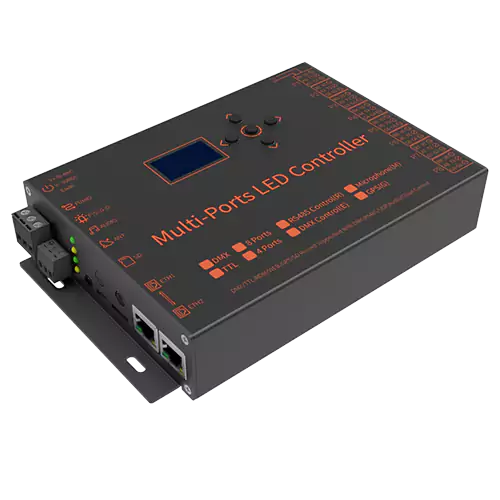

| LNX-378D | 8×DMX512 magnetic isolation interfaces, RDM management, ArtNet/sACN, SD playback, KNX, UDP, cloud control, LINE IN, time scheduling, dual network ports, engineering lock | — |

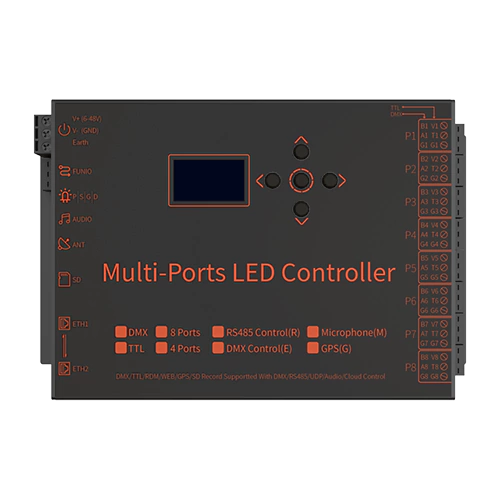

| LNX-378T | 8×TTL interfaces (WS2811, etc.), 48 universes / 16384 channels, Gamma correction, custom chips, other basic functions same as D series | — |
| +E Suffix | Inherits all D/T basic functions | External Control (WEB configurable as DMX or RS485): Switch SD files/speed/brightness via console or RS485 command, supports multi-device addressing |
| +M Suffix | Inherits all D/T basic functions | Built-in high-sensitivity microphone, music synchronization without external wiring |
| +G Suffix | Inherits all D/T basic functions | GPS/BeiDou dual-mode time synchronization, enabling precise synchronized playback for geographically dispersed devices |
| +W Suffix | Inherits all D/T basic functions | Wireless synchronization and broadcasting, 15dB high-gain antenna, cabling-free networking |

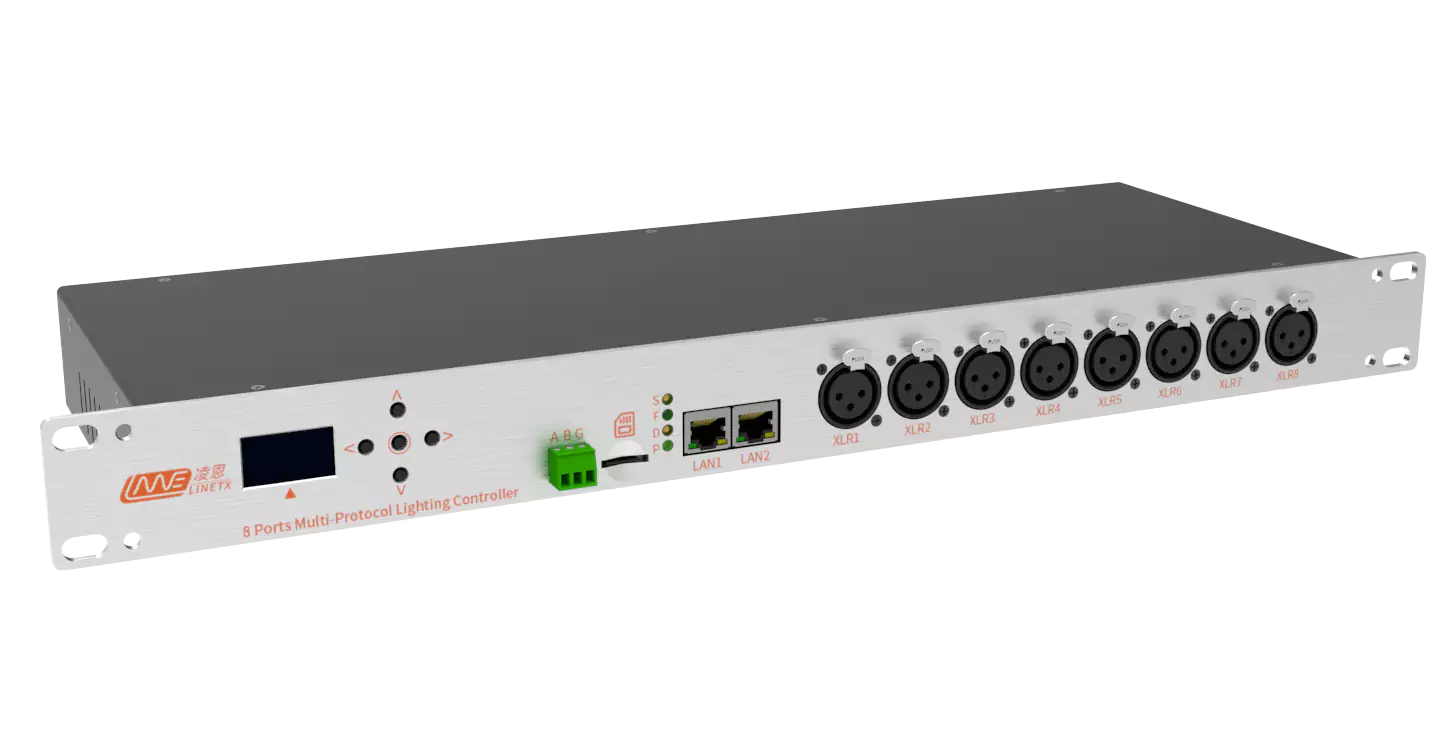

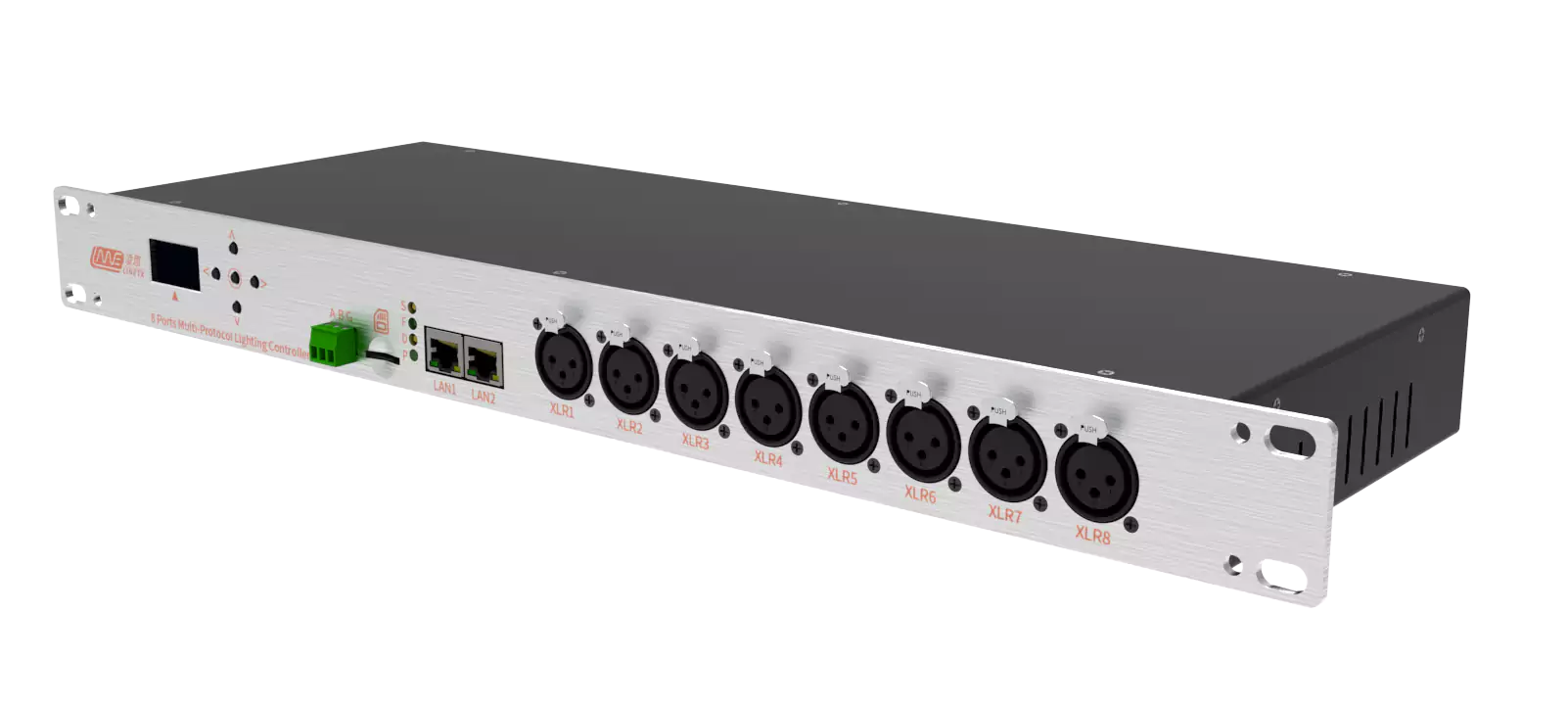

Multiple Forms · Wide Applicability

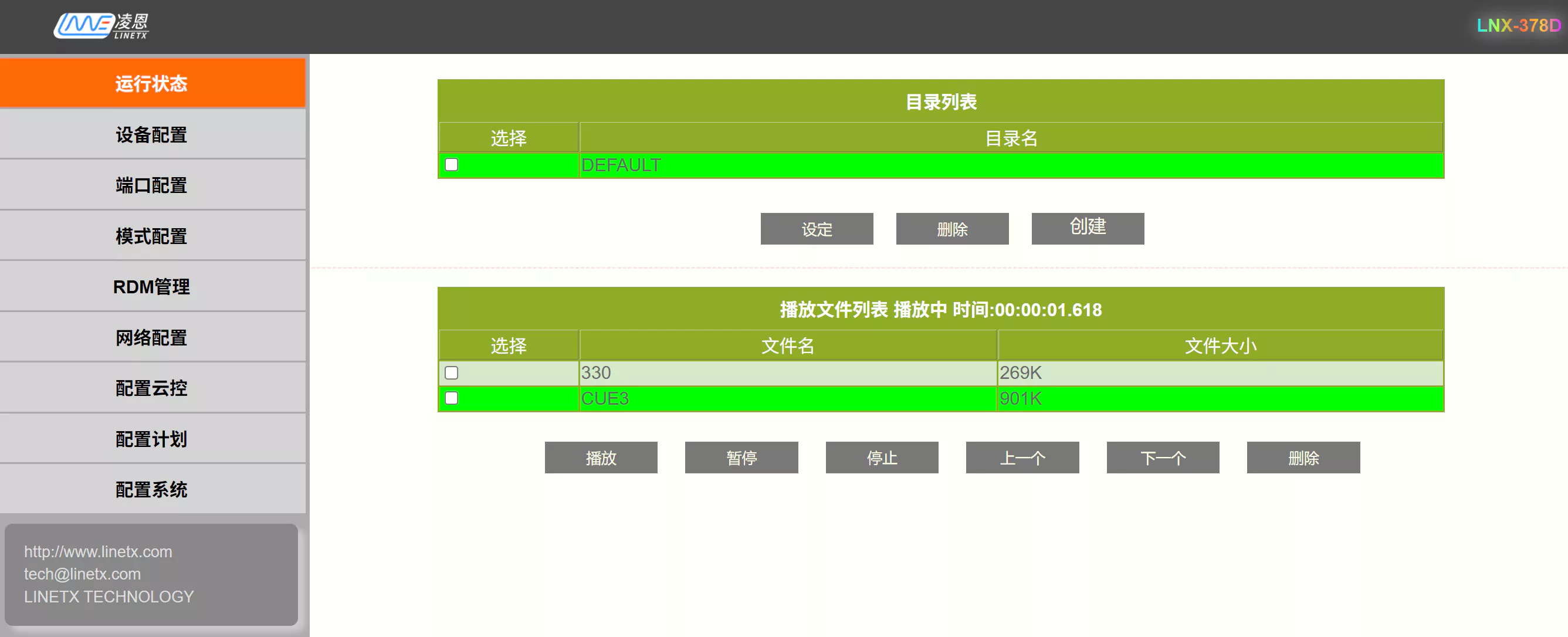

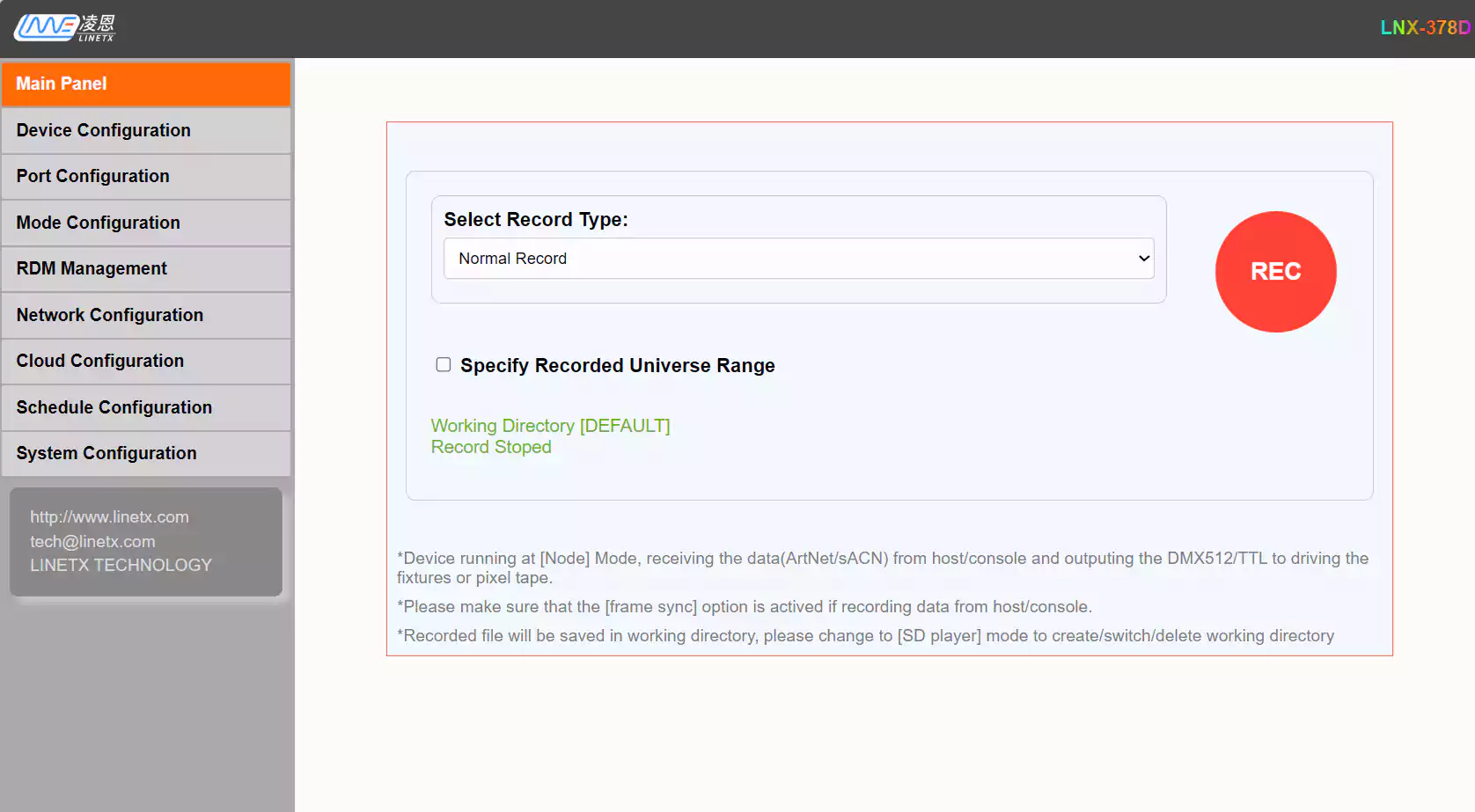

WEB Backend + OLED Local Control
Bilingual interface (Chinese/English), remote configuration of all parameters: port mapping, RDM management, scheduled tasks, SD card recording file upload/download, firmware upgrades. Equipped with OLED screen and 5-way navigation keys for more flexible on-site debugging.
- Authentication and secure encrypted access
- Supports device engineering lock, flexible trial period for payment control
- One-click search for RDM fixtures, remote parameter configuration

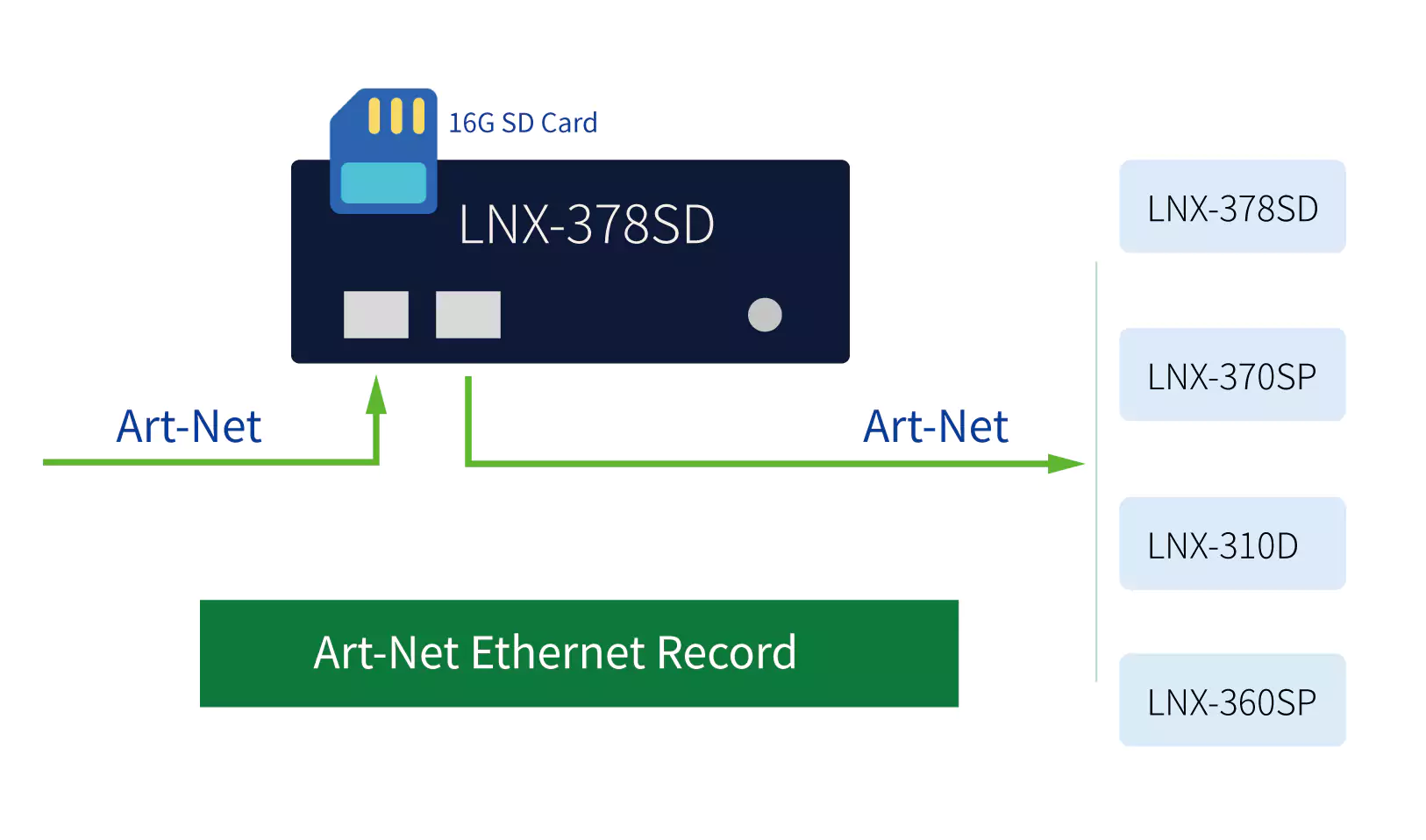

ArtNet Full-Scene Recording
Record all ArtNet data streams from consoles or software, supports full-frame recording and offline playback. No computer needed, play lighting effect files from SD card, with support for multi-device synchronization, scheduled playback, and fade-in/fade-out cross switching.

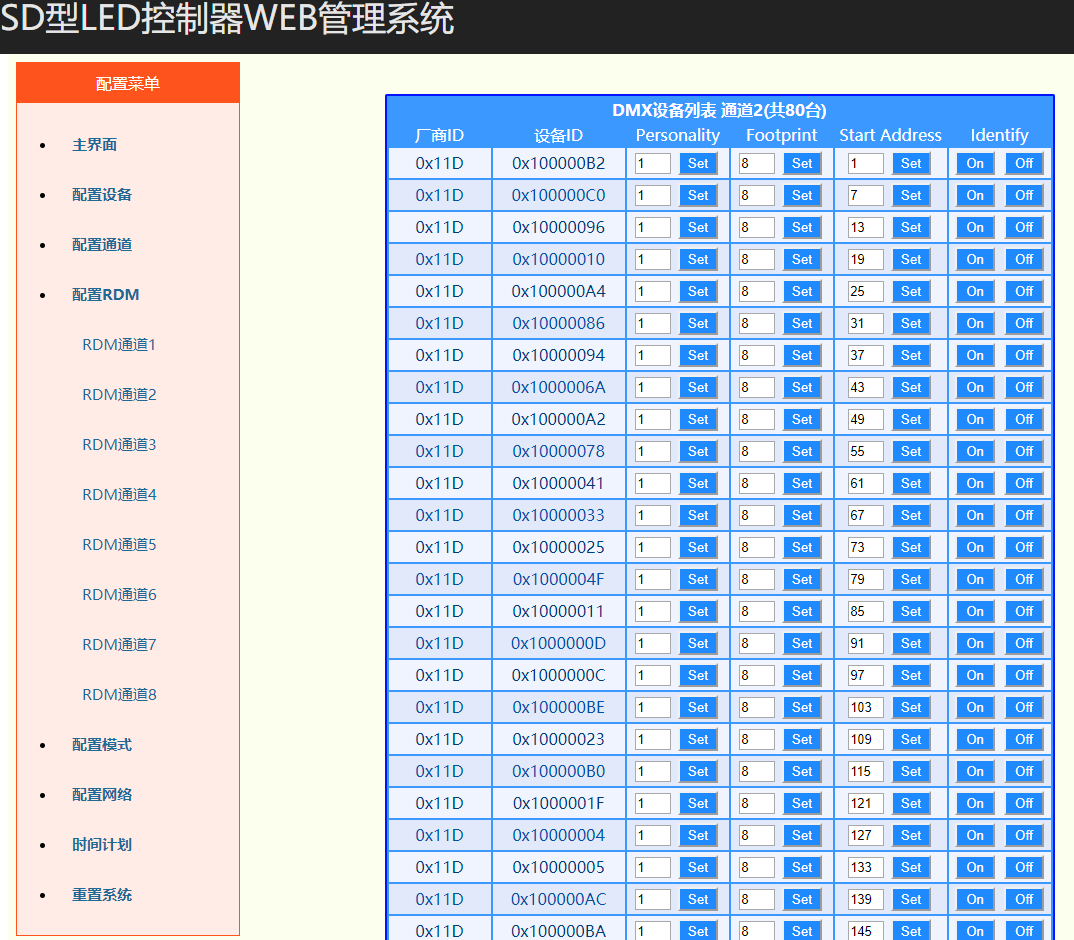

RDM + RDM Over ArtNet
Easily manage RDM fixtures on the DMX chain: search, set addresses, modes, channel parameters, supports RDM over ArtNet, advanced software can also control directly. Real-time WEB table display, power-off configuration saving.

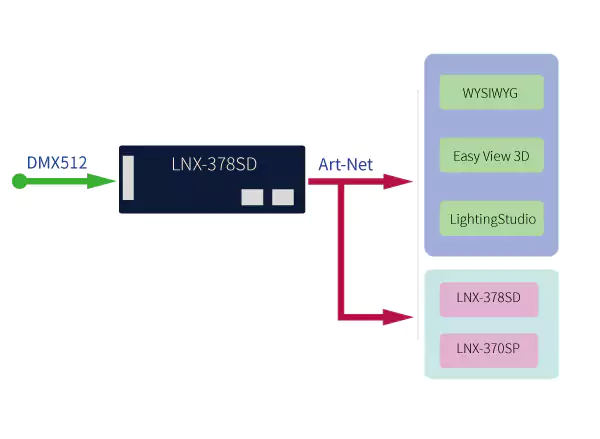

DMX ⇄ ArtNet Bidirectional Conversion
DMX console input converted to ArtNet output, direct connection to 3D simulation software (WYSIWYG, etc.); long-distance fiber optic transmission resists interference, breaking traditional limitations.

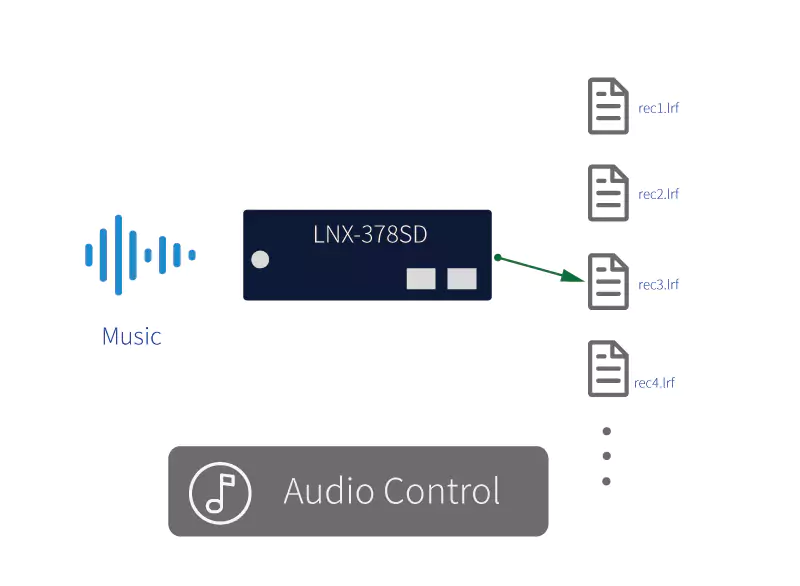

Audio Real-Time Rhythm
3.5mm audio input or built-in microphone analyzes beat points to trigger file switching, accelerate playback, or adjust brightness. Perfect for KTV/bar live atmospheres.

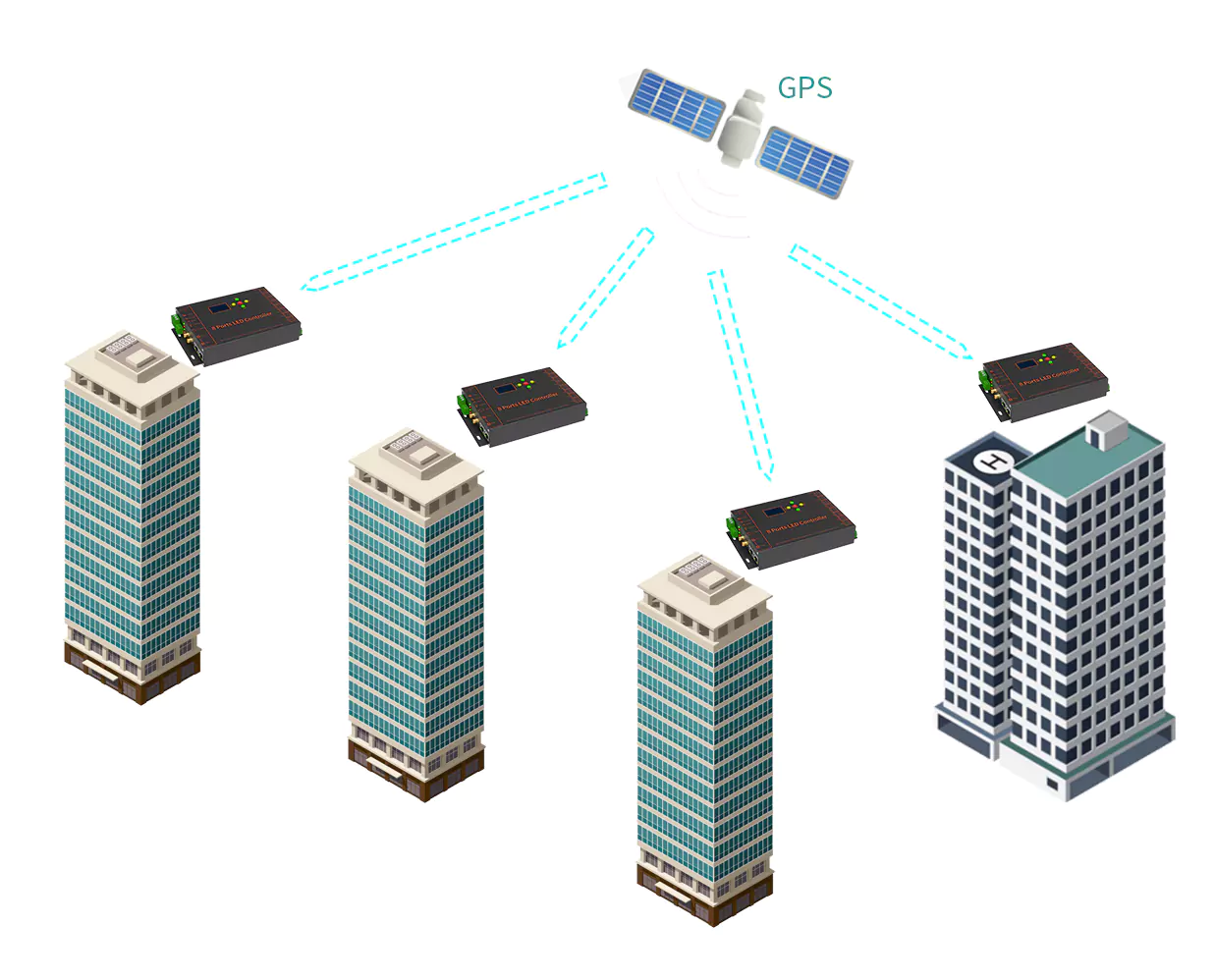

GPS Precise Synchronization
BeiDou/GPS dual-mode time synchronization, multiple devices can play synchronously without networking, enabling integrated control for bridges and multiple buildings, more efficient engineering deployment.

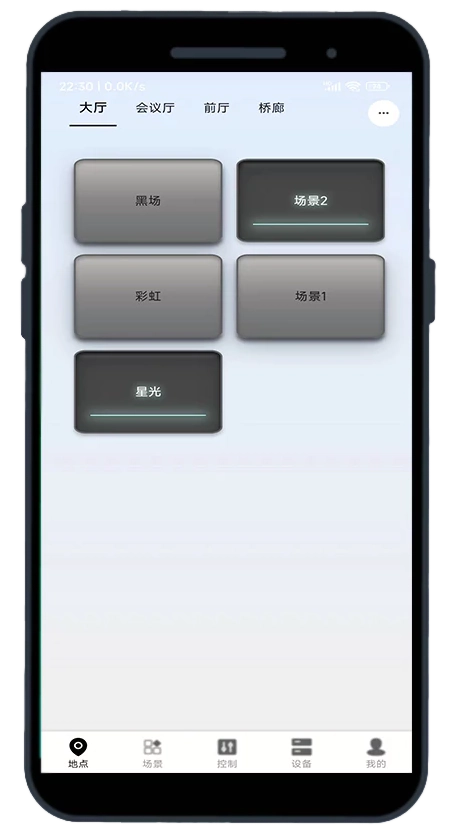

LineEye Lingen APP · Remote Cloud Control
Wherever you are, control the device via mobile internet: switch effects, record ArtNet, adjust brightness, create playback schedules. Through the Lingen Cloud Platform, bind device ID with one click for true IoT smart control.
Download APP ExperienceDual Network Port Daisy-Chaining
Built-in switch, one in one out chain connection, saving switch costs, simplifying cabling.

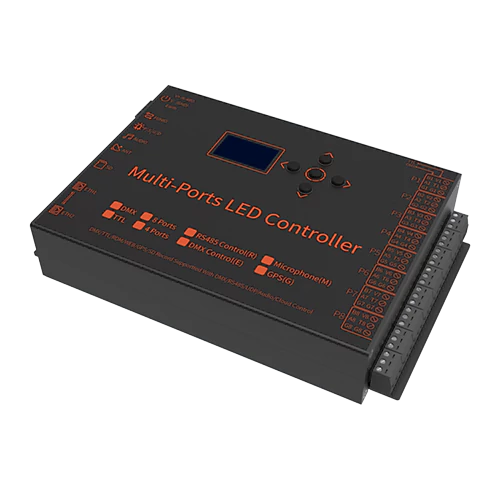

Industrial Clamp Terminals
Highly reliable 3-pin terminals, vibration resistant, reducing contact resistance, ensuring stable signal transmission.
